The Sequal  Eclipse 5 delivers, so you don’t have to.

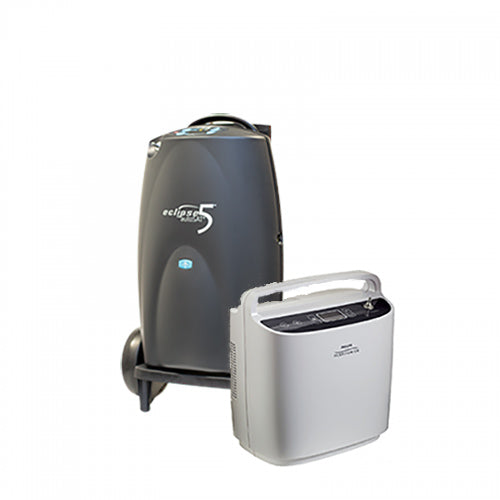

The NEW SeQual Eclipse 5

The Most Robust and Reliable POC on the Market. The new generation of SeQual Eclipse raises the bar for POC performance. The Eclipse 5 features the same benefits that you love about the Eclipse 3, but with next generation internal components that enhance the reliability of the POC. The Eclipse 5 goes where you go, with improved DC power operation that allows for full functionality of the Eclipse 5 when running from DC outlets.  All continuous flow settings, up to 3 LPM, as well as all pulse flow settings, including the largest super setting of 192 mL, are available while operation on DC power. The Eclipse 5 battery will also charge while the unit is connected to DC power, which eliminates any anxiety of failed batteries on long road trips.

The Perfect O Solution for Low-Mobility Patients: If you’re currently delivering cylinders and have high delivery costs, look no further because Eclipse 5 is the ultimate solution for your patients and your business. Save time and money because cylinder deliveries are eliminated. Most patients not only require oxygen at home, but also on the go – SeQual Eclipse acts as both a stationary and portable unit to meet these needs.

Some patients have low and limited mobility, but the SeQual Eclipse gives them peace of mind and the freedom to enjoy life at a moment’s notice. Eclipse is lightweight and easy to maneuver by use of the universal cart with telescoping handle. This reliable unit keeps up with the various activities of daily living while providing the individualized oxygen prescription. The SeQual Eclipse is the best solution for patients with higher clinical oxygen needs, but also for those whose ambulatory activities are limited to moving from the house to the car so they can visit the doctor or friends and family.

SPECIFICATIONS

Size                                                                              H x W x D  19.3 x 12.3 x 7.1 (inches), 49.0 x 31.2 x 18.0 (cm)
Weight                                                                          Eclipse 15 lbs., Battery 3.4 lbs.
Continuous Flow Settings (measured in LPM)            0.5 to 3.0 LPM (0.5 liter increments)
Pulse Dose Settings (measured in mL)                       16-96mL, 128mL, 160mL, 192mL
O2  concentration                                                         90%+5.5%/-3% @ sea level
O2  output pressure (nominal)                                      5.0 psig (34.5 kPa)
Sound level                                                                   48 dBA at 3.0 LPM Continuous Flow Mode; 40 dBA at 3.0 Pulse setting

Power                                                                           AC Power  100-240 VAC, 50-60 Hz, DC Power 12 V nominal

Battery                                                                         97.5 W-Hr battery pack containing 7.92 gm of lithium content
Power Consumption                                                   52 watts at 1.0 LPM CF, 145 watts at 3.0 LPM, 45 watts at 1.0 pulse dose, 95 watts at 6.0 pulse dose
Battery Duration                                                          2 hours (at 2LPM continuous flow); 5.4 hours (pulse at a 2 setting)
Nominal Battery recharge time                                   1.8 to 5.0 hrs recharge time to achieve 80% capacity (dependent upon the flow)
Backup Alarm power                                                  9 volt battery
O2  concentration indicator                                        Green Light=Normal, Yellow=Caution <85%, Red Flashing=Warning <70%
Operating temperature                                               50ºF to 104ºF (10 ºC to 40ºC) at 82.4º F (28ºC) dew point, non-condensing
Trigger Sensitivity                                                       Adjustable between -0.135 cm H20 to -0.37 cm H20 (negative pressure)
Altitude Operating range                                            0-13,123 (0-4,000 meters)
Alarms/Alerts                                                             Loss of power, Low Battery, Low Therapeutic O2  Output, O2 flow outside normal limits No Inspiration detected in Pulse Dose Mode, Unit Malfunction

CALL 0345 100 0084 FOR PRICES

Setting up your Eclipse 5 Portable Oxygen Concentrator

BROCHURES

Sequal Eclipse 5 Brochure in English click HERE

Sequal Eclipse 5 Brochure in Spanish click HERE

Sequal Eclipse 5 Accessory Brochure HERE

 FOR MORE INFORMATION, GIVE ONE OF OUR SPECIALIST CUSTOMER SERVICE ADVISORS A CALL ON 01785 338133



The GCE Zen-O™ portable oxygen concentrator is designed to enable patients with respiratory disorders such as chronic obstructive pulmonary disease (COPD), better manage their oxygen therapy.



Weighing just 4.66 kg the Zen-O  can deliver up to 2 litres per minute of oxygen in either pulse or continuous flow and is supplied  with variety of accessories, including a carry bag and a pull cart for increased mobility.

Zen-O™ is designed with easy to replace sieve bed. The sieve bed can be replaced in the field using simple tools in under 5 minutes, saving time and money. Zen-O™ is produced in the UK.












Features

Dual mode

Zen-O™ portable oxygen concentrator can deliver up to 2 litres of oxygen in either pulse or continuous flow.

Easy to use

Simple to use with clear button operation and LCD panel.

UK expertise and global support

Zen-O™ portable oxygen concentrator is manufactured in the UK to high standards. Strategic partners in North America and Africa help us ensure accessories and spare parts are readily available to customers.

Field replaceable sieve bed

Zen-O’s practical design makes it easy for home oxygen providers to replace the sieve bed in under 5 minutes using simple tools.

Visual and audio alarms

Zen-O™ has various audible and visual alarms to prompt the user of a required action. Some alarms include low battery, service required, and no breath detected.

Warranty

Zen-O™ portable oxygen concentrator is supplied with a 3 year or 15,000 hours device warranty.
