Sequal Eclipse 5 POC With autoSAT 6900-08-SEQ
6900-08-SEQ-1
Found cheaper price elsewhere or would like to negotiate a better one?
Make an Offer
Please complete the form below in full, state how many units you need, the model and how much you would like to pay to pay per unit, excluding VAT. You will get a decision within 30 minutes* during office opening hours.
FOR MORE INFORMATION, GIVE ONE OF OUR SPECIALIST CUSTOMER SERVICE ADVISORS A CALL ON 0345 100 0084
The Sequal Eclipse 5 delivers, so you don’t have to.

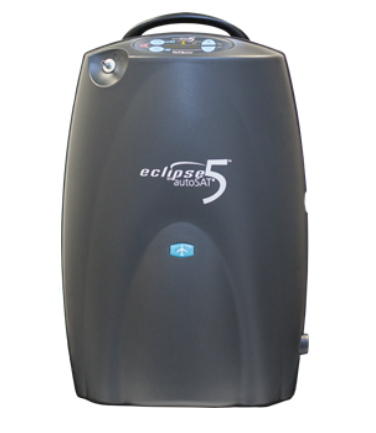

The NEW SeQual Eclipse 5
The Most Robust and Reliable POC on the Market. The new generation of SeQual Eclipse raises the bar for POC performance. The Eclipse 5 features the same benefits that you love about the Eclipse 3, but with next generation internal components that enhance the reliability of the POC. The Eclipse 5 goes where you go, with improved DC power operation that allows for full functionality of the Eclipse 5 when running from DC outlets. All continuous flow settings, up to 3 LPM, as well as all pulse flow settings, including the largest super setting of 192 mL, are available while operation on DC power. The Eclipse 5 battery will also charge while the unit is connected to DC power, which eliminates any anxiety of failed batteries on long road trips.
The Perfect O Solution for Low-Mobility Patients: If you’re currently delivering cylinders and have high delivery costs, look no further because Eclipse 5 is the ultimate solution for your patients and your business. Save time and money because cylinder deliveries are eliminated. Most patients not only require oxygen at home, but also on the go – SeQual Eclipse acts as both a stationary and portable unit to meet these needs.

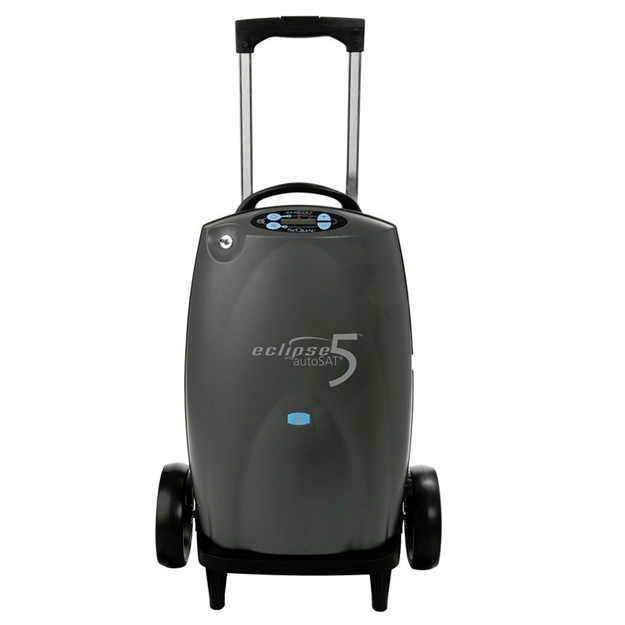

Some patients have low and limited mobility, but the SeQual Eclipse gives them peace of mind and the freedom to enjoy life at a moment’s notice. Eclipse is lightweight and easy to maneuver by use of the universal cart with telescoping handle. This reliable unit keeps up with the various activities of daily living while providing the individualized oxygen prescription. The SeQual Eclipse is the best solution for patients with higher clinical oxygen needs, but also for those whose ambulatory activities are limited to moving from the house to the car so they can visit the doctor or friends and family.
SPECIFICATIONS
Size H x W x D 19.3 x 12.3 x 7.1 (inches), 49.0 x 31.2 x 18.0 (cm)
Weight Eclipse 15 lbs., Battery 3.4 lbs.
Continuous Flow Settings (measured in LPM) 0.5 to 3.0 LPM (0.5 liter increments)
Pulse Dose Settings (measured in mL) 16-96mL, 128mL, 160mL, 192mL
O2 concentration 90%+5.5%/-3% @ sea level
O2 output pressure (nominal) 5.0 psig (34.5 kPa)
Sound level 48 dBA at 3.0 LPM Continuous Flow Mode; 40 dBA at 3.0 Pulse setting
Power AC Power 100-240 VAC, 50-60 Hz, DC Power 12 V nominal
Battery 97.5 W-Hr battery pack containing 7.92 gm of lithium content
Power Consumption 52 watts at 1.0 LPM CF, 145 watts at 3.0 LPM, 45 watts at 1.0 pulse dose, 95 watts at 6.0 pulse dose
Battery Duration 2 hours (at 2LPM continuous flow); 5.4 hours (pulse at a 2 setting)
Nominal Battery recharge time 1.8 to 5.0 hrs recharge time to achieve 80% capacity (dependent upon the flow)
Backup Alarm power 9 volt battery
O2 concentration indicator Green Light=Normal, Yellow=Caution <85%, Red Flashing=Warning <70%
Operating temperature 50ºF to 104ºF (10 ºC to 40ºC) at 82.4º F (28ºC) dew point, non-condensing
Trigger Sensitivity Adjustable between -0.135 cm H20 to -0.37 cm H20 (negative pressure)
Altitude Operating range 0-13,123 (0-4,000 meters)
Alarms/Alerts Loss of power, Low Battery, Low Therapeutic O2 Output, O2 flow outside normal limits No Inspiration detected in Pulse Dose Mode, Unit Malfunction
CALL 0345 100 0084 FOR PRICES
Setting up your Eclipse 5 Portable Oxygen Concentrator
BROCHURES
Sequal Eclipse 5 Brochure in English click HERE
Sequal Eclipse 5 Brochure in Spanish click HERE
Sequal Eclipse 5 Accessory Brochure HERE
