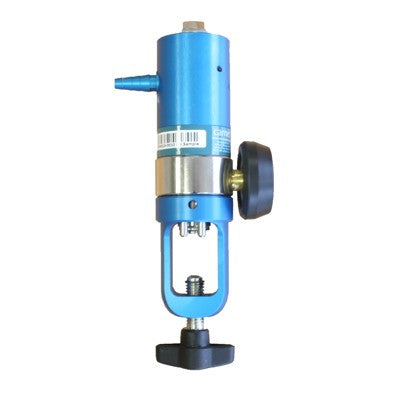

Dialflow O2 Regulator Range D 0.5 l-15 l Pin Index-Barb 818-0009

818-0009

£200.31 Save £-200.31
/
Tax included.

Dialflow Regulators provide all the benefits of Microdial and Dialflow Meters without the need for a regulated gas supply. Benefiting from a built in state-of-the-art piston style pressure regulator, Dialflow Regulators deliver accurate flow rates from full to near empty gas cylinders.

  • Accurate, repeatable standard and micro flow control
  • A range of international cylinder connections to suit most gas cylinder valves
  • Combination units with pressure and flow ports
  • Halogen-free

Dialflow O2 Regulator Range D 0.5 l-15 l Pin Index/Barb 818-0009



Device Specifications:

Inlet Connection Pin Index ISO 407
Outlet Connection Barb to EN 13544-2 (6 mm nominal tube)
Auxilliary Port None
Flow Range 0.5 to 15 l/min
Inlet Pressure 0.9 to 20 MPa (9 to 200 bar)
Standard Discharge (Q1) N/A
Maximum flow N/A
Inlet filtration 40 µm
Orifice Plate Filtration 5 µm
Accuracy at nominal pressure +/- 10 % of setting at 1 l/min and above. +/- 20 % of setting below 1 l/min
Over pressure valve set point 550 kPa
Service Interval 4 years
Environmental Limits for Transport and Storage Temperature: -20 °C to 60 °C (-4 °F to 140 °F) Humidity: 0 - 100 % RH
Environmental Limits for Use Temperature: -20 °C to 60 °C (-4 °F to 140 °F) Humidity: 0 - 100 % RH
Applied Standards N/A


For other flow ratings please see;
